| Imager Size |
1/1.7
|
|
| Mega-Pixel Compatibility |
6
|
|
| Mount Type |
C
|
|
| Focal Length |
35mm
|
|
| Aperture Range |
2.4 – 16
|
|
| Field of View Angle (Horizontal x Vertical) |
1/1.7 |
12.6° x 9.5°
|
| 1/1.8 |
12.4° x 8.4°
|
|
| 1/2 |
10.8° x 8.1°
|
|
| 1/3 |
8.1° x 6.1°
|
|
| Focusing Range |
0.1m – INF
|
|
| Operation | Focus |
Manual with Lock
|
| Iris |
Manual with Lock
|
|
| Filter Size |
M27 P=0.5mm
|
|
| Wave Length |
Visible Light
|
|
| TV Distortion |
-0.06% (Design Value)
|
|
| Weight |
65g
|
|
| Operating Temperature |
-20°C – +60°C
|

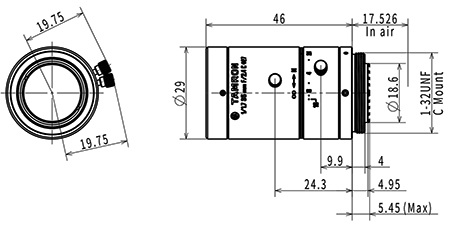

Diagram
