2/3" 75mm F/3.9 with Lock 23FM75L

Downloads

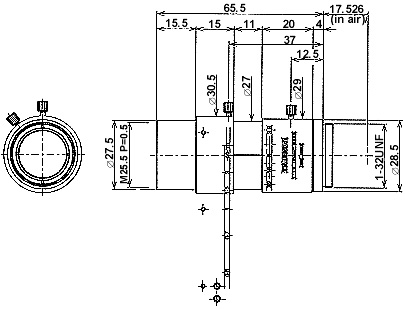

Diagram

Specifications

Imager Size
2/3
Mount Type
C
Focal Length
75mm
Aperture Range
3.9 – 32
Field of View Angle
(Horizontal x Vertical)
1/3
3.5° x 2.5°
1/2
5.0° x 3.5°
2/3
6.9°x 5.2°
Effective Diameter (Front/Rear Lens)
Ø18.4mm/Ø10.7mm
Operation Focus
Manual with Lock
Iris
Manual with Lock
Minimum Object Distance
19.7 in. (0.5m)
Back Focus (in air)
27.115mm
Filter Size
M25.5 P=0.5
Maximum Diameter
ø1.1 in.
(ø29mm)
Overall Length
2.6 in. (65.5mm)
Weight
68g
