| Imager Size |
2/3
|
|
| Mount Type |
C
|
|
| Focal Length |
25mm
|
|
| Aperture Range |
1.6 – 16
|
|
| Field of View Angle (Horizontal x Vertical) |
1/3 |
11.0° x 8.2°
|
| 1/2 |
14.6° x 11.0°
|
|
| 2/3 |
20.0°x 15.0°
|
|
| Effective Diameter (Front/Rear Lens) |
Ø16.0mm/Ø10.8mm
|
|
| Operation | Focus |
Manual with Lock
|
| Iris |
Manual with Lock
|
|
| Minimum Object Distance |
8.3 in. (0.21m)
|
|
| Back Focus (in air) |
11.60mm
|
|
| Filter Size |
M25.5 P=0.5
|
|
| Maximum Diameter |
ø1.1 in. (ø29mm)
|
|
| Overall Length |
1.0 in. (25.5mm)
|
|
| Weight |
40g
|

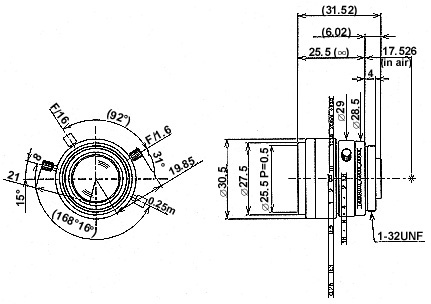

Diagram
