| Imager Size |
2/3
|
|
| Mount Type |
C
|
|
| Focal Length |
8mm
|
|
| Aperture Range |
1.4 – 16
|
|
| Field of View Angle (Horizontal x Vertical) |
1/3 |
33.1° x 25.0°
|
| 1/2 |
43.6° x 33.1°
|
|
| 2/3 |
59.3° x 45.2°
|
|
| Effective Diameter (Front/Rear Lens) |
Ø13.7mm/Ø10.4mm
|
|
| Operation | Focus |
Manual with Lock
|
| Iris |
Manual with Lock
|
|
| Minimum Object Distance |
10.2 in. (0.26m)
|
|
| Back Focus (in air) |
11.60mm
|
|
| Filter Size |
M25.5 P=0.5
|
|
| Maximum Diameter |
ø1.1 in.
(ø29mm) |
|
| Overall Length |
1.1 in. (27mm)
|
|
| Weight |
48g
|

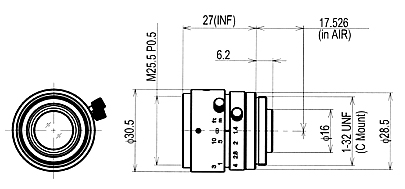

Diagram
