| Imager Size |
1/3 (Applicable for 1/2.7 , 1/2.8)
|
||
| Mount Type |
CS
|
||
| Focal Length |
8-50mm
|
||
| Aperture Range |
1.6 – 360
|
||
| Field of View Angle (Horizontal x Vertical) |
1/3 | Wide |
33.5° x 25.1°
|
| Tele |
5.6° x 4.2°
|
||
| 1/4 | Wide |
25.1° x 18.8°
|
|
| Tele |
4.2° x 3.2°
|
||
| Focusing Range |
2m – INF
|
||
| Operation | Focus |
Manual with Lock
|
|
| Zoom |
Manual with Lock
|
||
| Iris |
DC Auto Iris
|
||
| Back Focus (in air) |
8.08mm
|
||
| Wave Length |
Visible Light – Near Infrared
|
||
| Operating Voltage |
OPEN : 4.0v
CLOSE : 0.5v |
||
| Driving Current |
95mA : Per-phase
|
||
| Weight |
106g
|
||
| Operating Temperature |
-20°C – +60°C
|
||

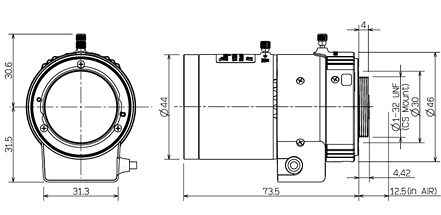

Diagram
