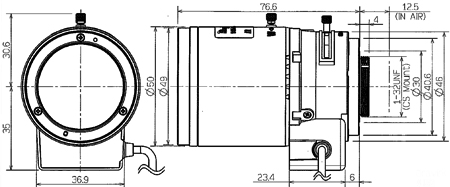

M13VG550IR

Imager Size			1/3
Mount Type			CS
Focal Length			5-50mm
Aperture Range			1.6 – 360
Field of View Angle (Horizontal x Vertical)	1/3	Wide	53° x 40°
		Tele	5.6° x 4.2°
	1/4	Wide	40° x 30°
		Tele	4.2° x 3.2°
Focusing Range			1m – INF
Operation	Focus		Manual with Lock
	Zoom		Manual with Lock
	Iris		DC Auto Iris
Back Focus (in air)			Wide : 13.71mm Tele : 17.87mm
Wave Length			Visible Light – Near Infrared
Operating Voltage			0.5v – 4.0v
Weight			104g
Operating Temperature			-20°C – +60°C

1/3" 5-50mm F/1.6 M13VG550IR
