| Imager Size |
1/1.8
|
|
| Mega-Pixel Compatibility |
2
|
|
| Mount Type |
C
|
|
| Focal Length |
12mm
|
|
| Aperture Range |
1.4 – 16
|
|
| Field of View Angle (Horizontal x Vertical) |
1/1.8 |
34.2° x 25.8°
|
| 1/2 |
30.2° x 22.7°
|
|
| 1/3 |
22.7° x 17.1°
|
|
| Focusing Range |
0.1m – INF
|
|
| Operation | Focus |
Manual with Lock
|
| Iris |
Manual with Lock
|
|
| Filter Size |
M25.5 P=0.5mm
|
|
| Back Focal Distance |
12.40mm
|
|
| Wave Length |
Visible Light
|
|
| Weight |
57g ± 3g
|
|
| Operating Temperature |
-10°C – +60°C
|

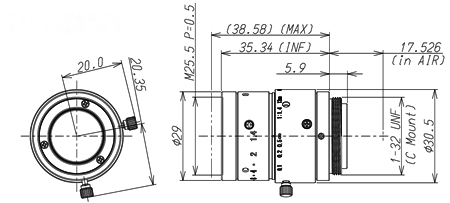

Diagram
