| Imager Size |
1./1.2
|
|
| Mega-Pixel Compatibility |
5
|
|
| Mount Type |
C
|
|
| Focal Length |
50mm
|
|
| Aperture Range |
2.8 – 16
|
|
| Field of View Angle (Horizontal x Vertical) |
1/1.2 [4:3] |
12.2° x 9.2°
|
| 1/1.2 [16:9] |
13.2° x 7.5°
|
|
| 2/3 [4:3] |
10.0° x 7.5°
|
|
| 2/3 [16:9] |
10.9° x 6.16°
|
|
| Focusing Range |
0.3m – INF
|
|
| Operation | Focus |
Manual with Lock
|
| Iris |
Manual with Lock
|
|
| Filter Size |
M27 P=0.5mm
|
|
| Wave Length |
Visible Light
|
|
| TV Distortion |
-0.08%
|
|
| Weight |
70g
|
|
| Operating Temperature |
-20°C – +60°C
|

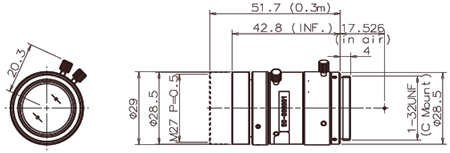

Diagram
