| Imager Size |
1./1.2
|
|
| Mega-Pixel Compatibility |
5
|
|
| Mount Type |
C
|
|
| Focal Length |
16mm
|
|
| Aperture Range |
2.0 – 16
|
|
| Field of View Angle (Horizontal x Vertical) |
1/1.2 [4:3] |
37.4° x 28.4°
|
| 1/1.2 [16:9] |
40.5° x 22.3°
|
|
| 2/3 [4:3] |
31.0° x 23.4°
|
|
| 2/3 [16:9] |
33.7° x 19.2°
|
|
| Focusing Range |
0.1m – INF
|
|
| Operation | Focus |
Manual with Lock
|
| Iris |
Manual with Lock
|
|
| Filter Size |
M27 P=0.5mm
|
|
| Wave Length |
Visible Light
|
|
| TV Distortion |
-0.56%
|
|
| Weight |
51g
|
|
| Operating Temperature |
-20°C – +60°C
|

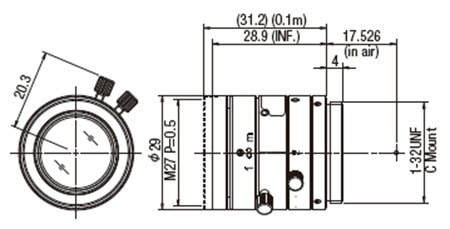

Diagram
