| Imager Size |
1/3
|
||
| Mount Type |
CS
|
||
| Focal Length |
3.0-8mm
|
||
| Aperture Range |
1.0 – 360
|
||
| Field of View Angle (Horizontal x Vertical) |
1/3 | Wide |
92.5° x 68.0°
|
| Tele |
35.7° x 26.8°
|
||
| 1/4 | Wide |
68.0° x 50.4°
|
|
| Tele |
26.8° x 20.1°
|
||
| Focusing Range |
0.2m – INF
|
||
| Operation | Focus |
Manual with Lock
|
|
| Zoom |
Manual with Lock
|
||
| Iris |
DC Auto Iris
|
||
| Back Focus (in air) |
Wide 7.69 – Tele 13.72mm
|
||
| Operating Voltage |
Open 3.0V
Close 0.7V |
||
| Weight |
44.8g
|
||
| Operating Temperature |
-20°C – +60°C
|
||

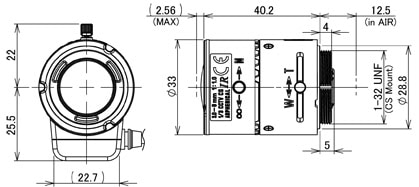

Diagram
